• PC(X86) Parameters
    CPU
    Intel Celeron Dual Core J1900 / Intel Core i3、i5、i7
    RAM
    DDR3 4G/8G
    Hard disk
    128G
    Graphics card
    Integrated Graphics
    Extensible
    720P/1080P
    System
    Multi-touch:Windows7 / Windows8 /Windows10 / Android / Linux
    single touch: XP/CE/MAC
    Android Parameters
    CPU
    Quad Core RK3288
    RAM
    2G
    Hard disk
    Flash memory 8G, expandable
    Graphics card
    Android HD
    Extensible
    720P/1080P
    System
    Android 7.1
    Display Parameters
    Screen type
    LED LCD screen Class A
    Size
    19 inch(16:10)
    Display area
    257 mm (H)×410.2 mm (V)
    Resolution
    1440×900
    Brightness
    ≥ 250 cd/㎡
    Contrast
    1000:1
    Response time
    < 5.5 ms
    Total color
    16.7M (8-bit 2 (LVDS) channel low voltage differential signal)
    Refresh rate
    60Hz
    Viewing angle
    Horizontal 178°, Vertical 178°
    Service life
    > 50000 hours
    Touch screen parameters
    Touch screen type
    Projected Capacitive Technology (Capacitive Touch Screen)
    Response time
    < 5ms
    Touch points
    Standard 10-point touch
    Touch effective recognition
    > 1.5mm
    Scanning frequency
    200Hz
    Scanning accuracy
    4096×4096
    Way of communication
    Full Speed USB 2.0, 3.0
    Theoretical Clicks
    More than 50 million times
    Working current/voltage
    180Ma/DC+5V±5%
    Anti-light interference
    Normal use when strong light changes such as sunlight, incandescent lamps, fluorescent lamps, etc.
    Touch data output method
    Coordinate output
    Surface hardness
    Physically tempered Mohs grade 7 explosion-proof glass
    OS Compatibility
    Windows 7/ Windows 8 / Windows XP / Linux / MAC OS / Android
    Firmware
    upgradeable
    Drive
    Drive-free, plug and play
    Display parameters (only used as part of the touch display)
    Power interface
    C 12V(9~36V)
    VGA input (15-pin D-Sub)
    1
    High-Definition Multimedia Interface (HDMI)
    1
    COM Interface
    2
    USB Port
    4
    Microphone input (optional)
    1
    Audio output (optional)
    1
    Working environment
    Operating temperature
    0℃-40℃
    Working humidity
    10% - 95%
    Storage temperature
    0℃-40℃
    Storage humidity
    10% - 95%
    Physical Parameters
    Screen
    19 inch
    Display size
    257 mm * 410.2 mm (16:10)
    Overall size
    302 mm(W)×  457.8 mm(H)× 68.7(D)mm
    Power Parameters
    Input power
    110-240V~ 50/60Hz
    Machine power consumption
    60W
    Standby power consumption
    ≤1W
    Audio output power
    4Ω 3W×2
    Package(1 unit)
    Accessories
    2 meters (both ends can be plugged and unplugged),Manual,Warranty Card,Embedded bracket
    Package size
    -
    Weight
    -

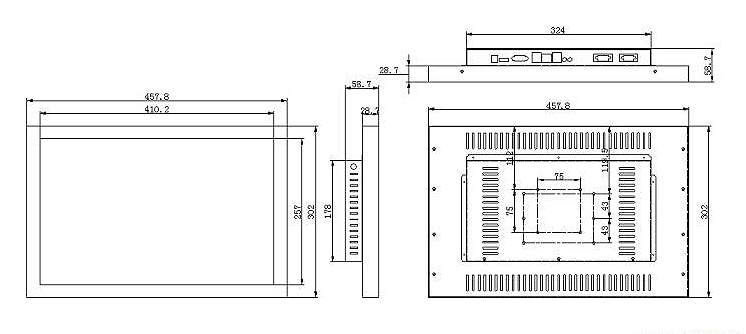

    Machine structure diagram
  • 01

• Optional installation of 720P/1080P;
• Capacitive/resistive touch mode is optional;
• Optional fan free fully sealed design, excellent heat dissipation, zero noise;
