General

Model

D4

Panel size

27 inch

Resolution

1920×1080 / 2560×1440 / 3840×2160（16:9）

CPU

Intel Core i3、i5、i7
Intel Celeron
Intel Pentium

RAM

4GB / 8GB / 16GB / 32GB

SSD

64GB / 128GB / 256GB / 512GB / 1TB

HDD

500GB / 1TB / 2TB

Graphics card

NVIDIA GeForce GTX1030 2G
NVIDIA GeForce GTX1050 2G
NVIDIA GeForce GTX1050TI 4G
NVIDIA GeForce GTX1650 4G
NVIDIA GeForce RTX3050 8G
Integrated Graphics

Multi-Media

High Definition Audio Codec; Stereo Speaker

System

Compatible with Win7/Win10/Win11

Mechanical

Product size

614(W)×367(S)×472(H) mm

Graphics card size

Maximum size supported 245×135×38 mm

Material

Mg-Al alloy base ,ABS plastic shell

Color available

Black

Extensible

Camera

3.0MP/5.0MP/8.0MP（with Mic）Camera

Extended interface

2 × USB2.0
1 × Type-C

Card reader

Optional

3.5mm Headphone jack

Optional

Connectivity

Network card

100/1000Mbps adaptive network card

WIFI

150Mbps wireless WiFi
(433Mbps dual band WiFi and WiFi 6 functions are optional)

Bluetooth

Default BT4.2 / Available BT5.0

Interface

1 × Power Port
1 × HDMI
1 × VGA(COM)
1 × LAN
4 × USB
1 × Audio Out
1 × Mic in

Power adapter

input：100-240v AC， 50/60Hz universal；

Package（1 unit）

Accessories

Power cable,Power adaptor

Package size

-

Weight

-

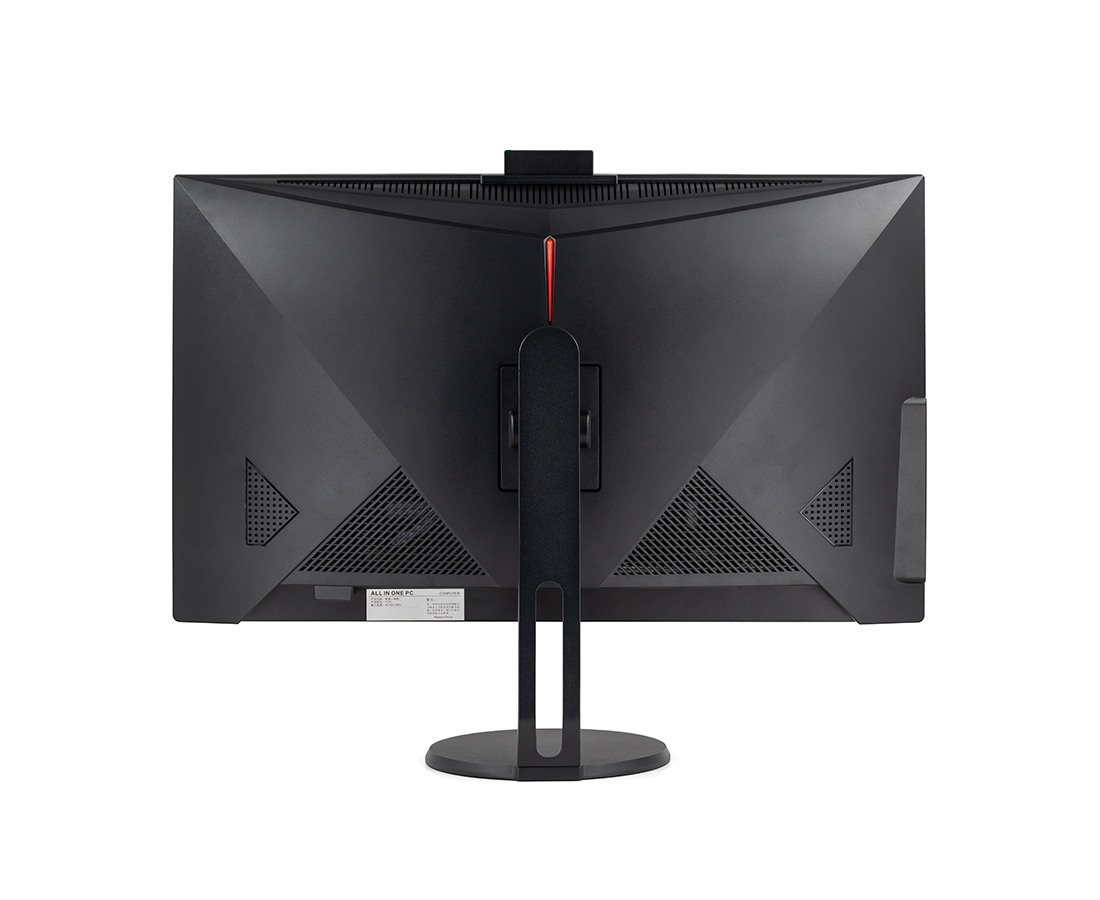

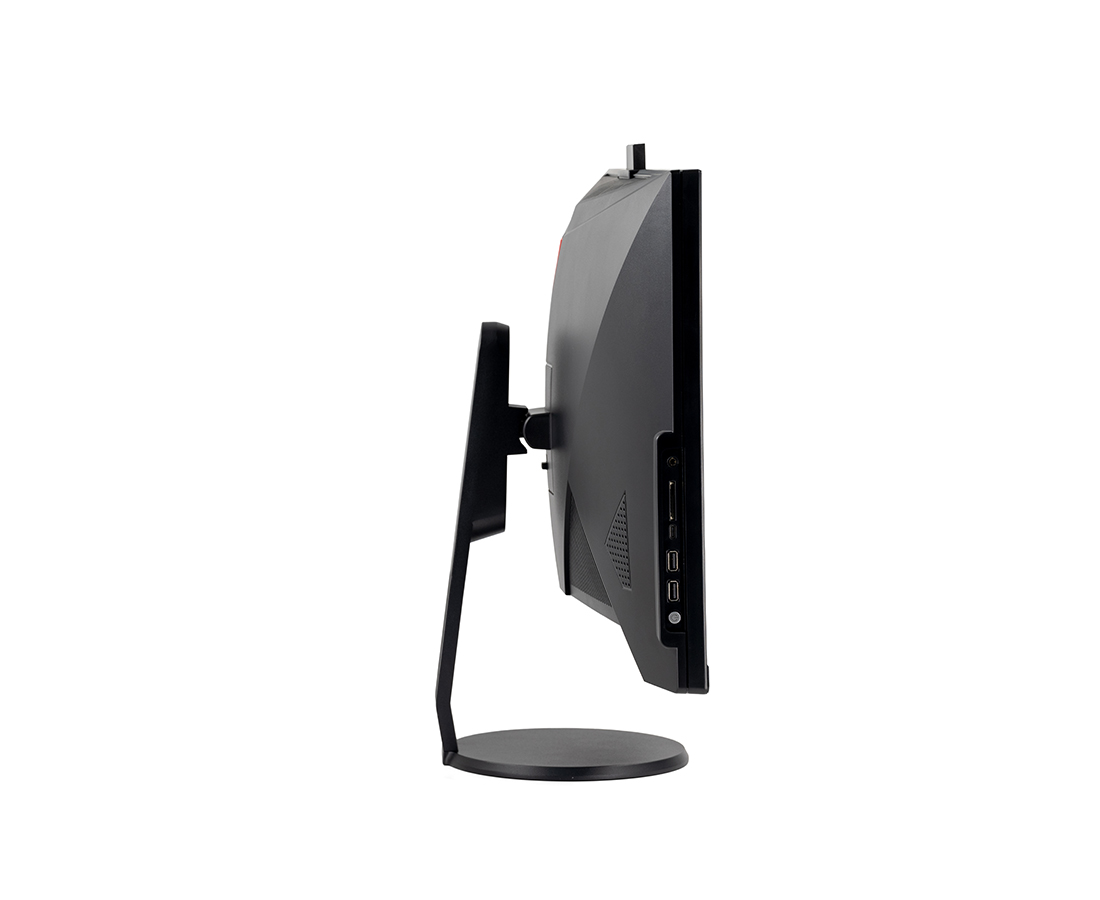

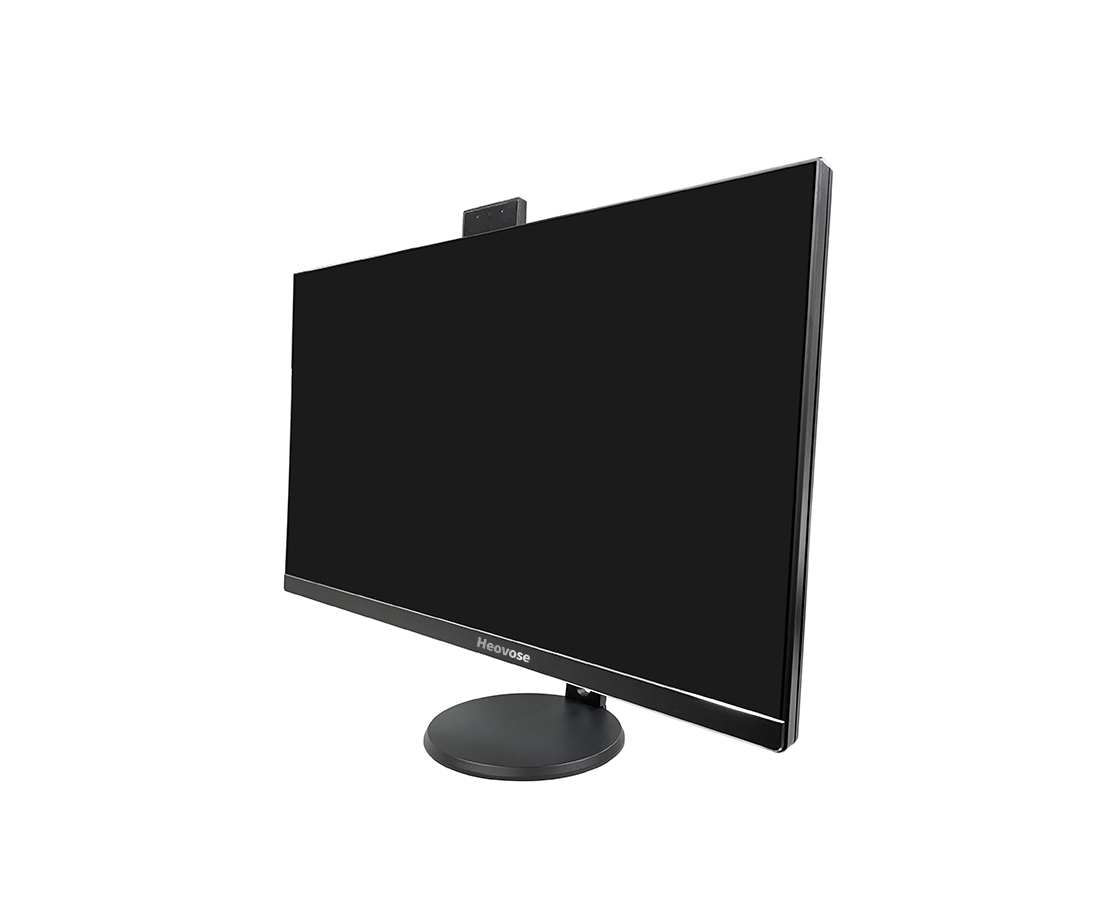

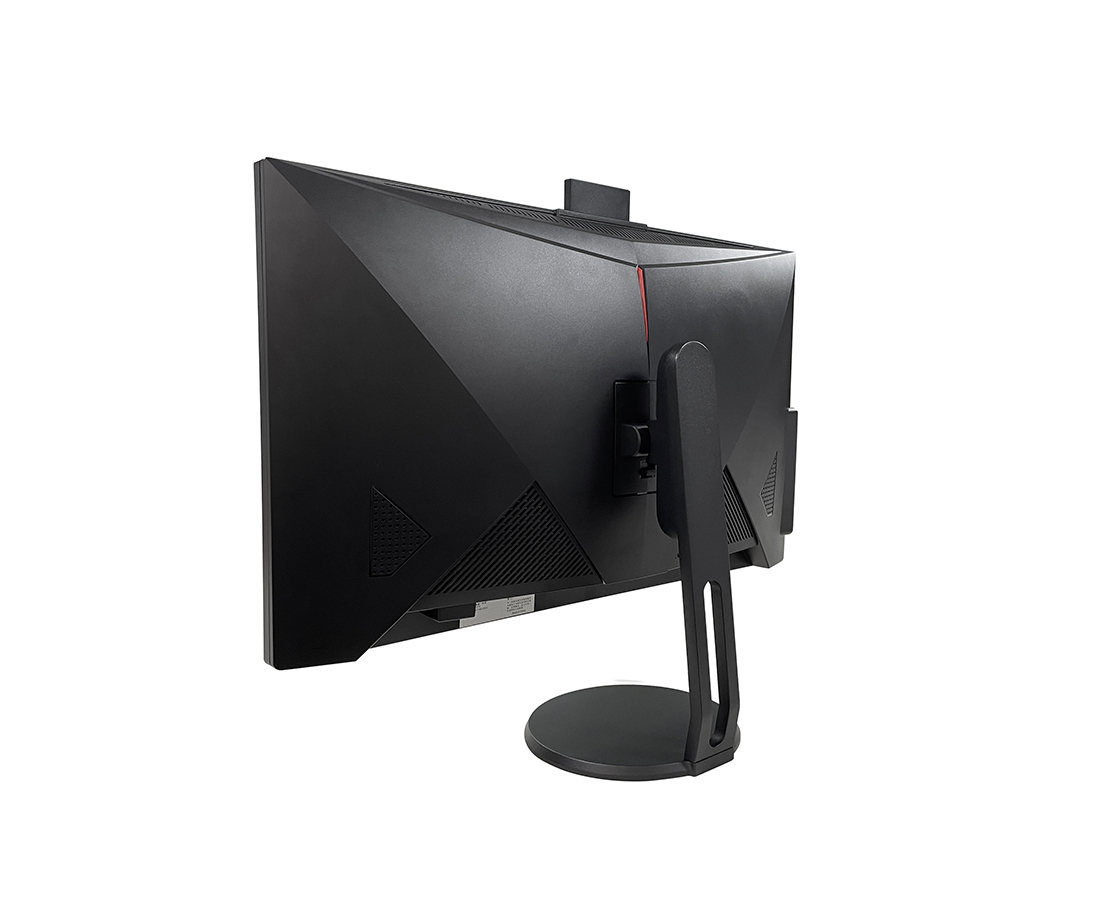

Gaming D4 Series All-in-one PC

GuangZhou Heovose Technology Co., Ltd. ꄲ ALL IN ONE PC ꄲ Gaming D4 Series All-in-one PC

• This model can be installed the pop-up webcam on the top, support double-mic ;
• Optional 2K QHD and 4K UHD high-definition resolution screens;
• it can install discrete graphics card, excellent performance, it is a better choice for the game player and designer.;
• Optional Type-C / card reader / headphone jack on the left side of the product;
