Model

H81MN-3HV

CPU

Intel 4th generation processor

Chipset

Intel H81 chipset

Memory

2 * DDR3, Supports 1066/1333/1600MHz frequencies, with a maximum capacity of 16GB

Hard disk interface

1 * M.2 (supports NVMe/NGFF)
3 * SATA

USB interface

4 * USB3.0
6 * USB2.0

Graphics interface

1 * PCIE Graphics card slot

Expansion

1 * PCIE X1

Display external interface

1 * HDMI
1 * VGA

Network

1 * RJ45 (Realtek 8111H 100Mbps/Gigabit Adaptive Network Card)

Audio

Using Realtek High Fidelity Audio Independent Sound Card

Front interface

1 * F_USB2.0 (expandable with 2 USB2.0 ports)
1 * F_USB3.0 (expandable with 2 USB3.0 ports)
1 * F_AUDIO audio front pin

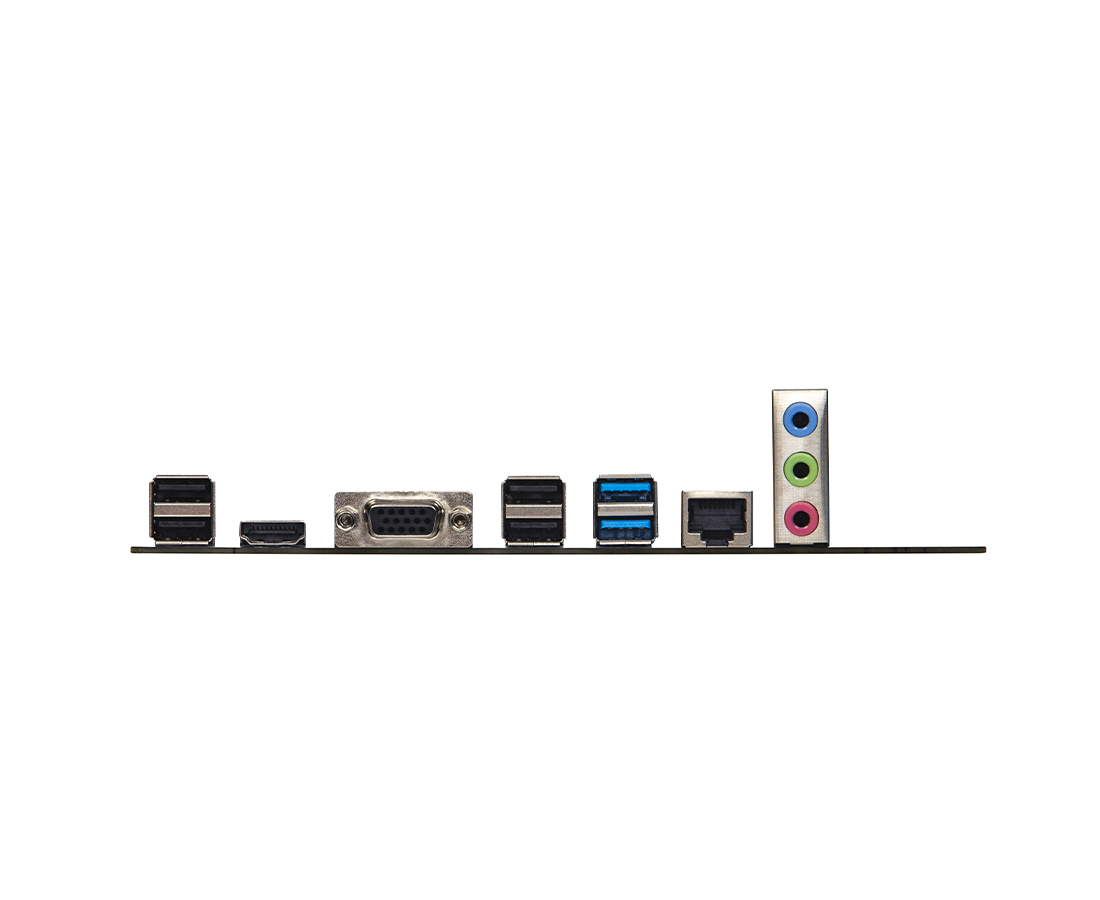

Rear interface

2 * USB2.0
1 * HDMI
1 * VGA
2 * USB2.0
2 * USB3.2 Gen 1
1 * RJ45
3 * Audio

Power supply interface

1 * 24PIN ATXPWR
1 * 4PIN ATX12V

Product size

170mm×190mm

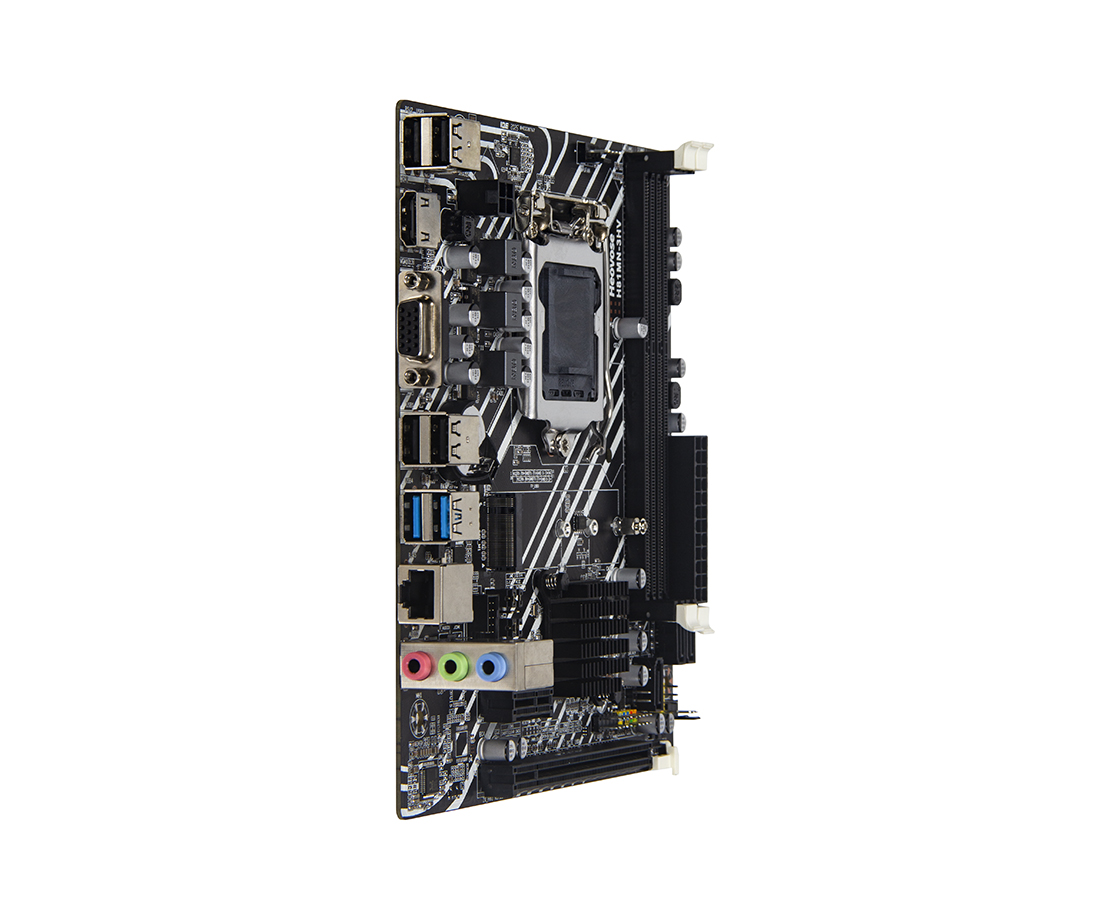

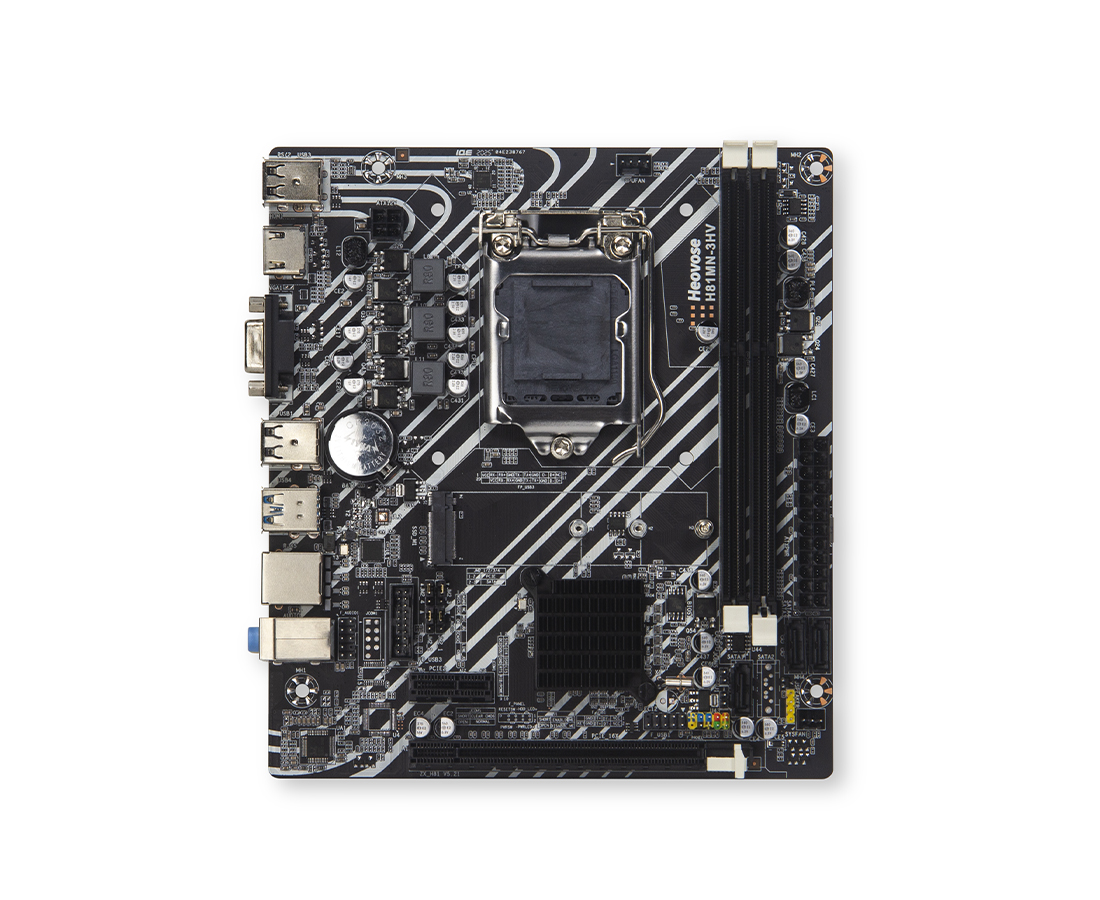

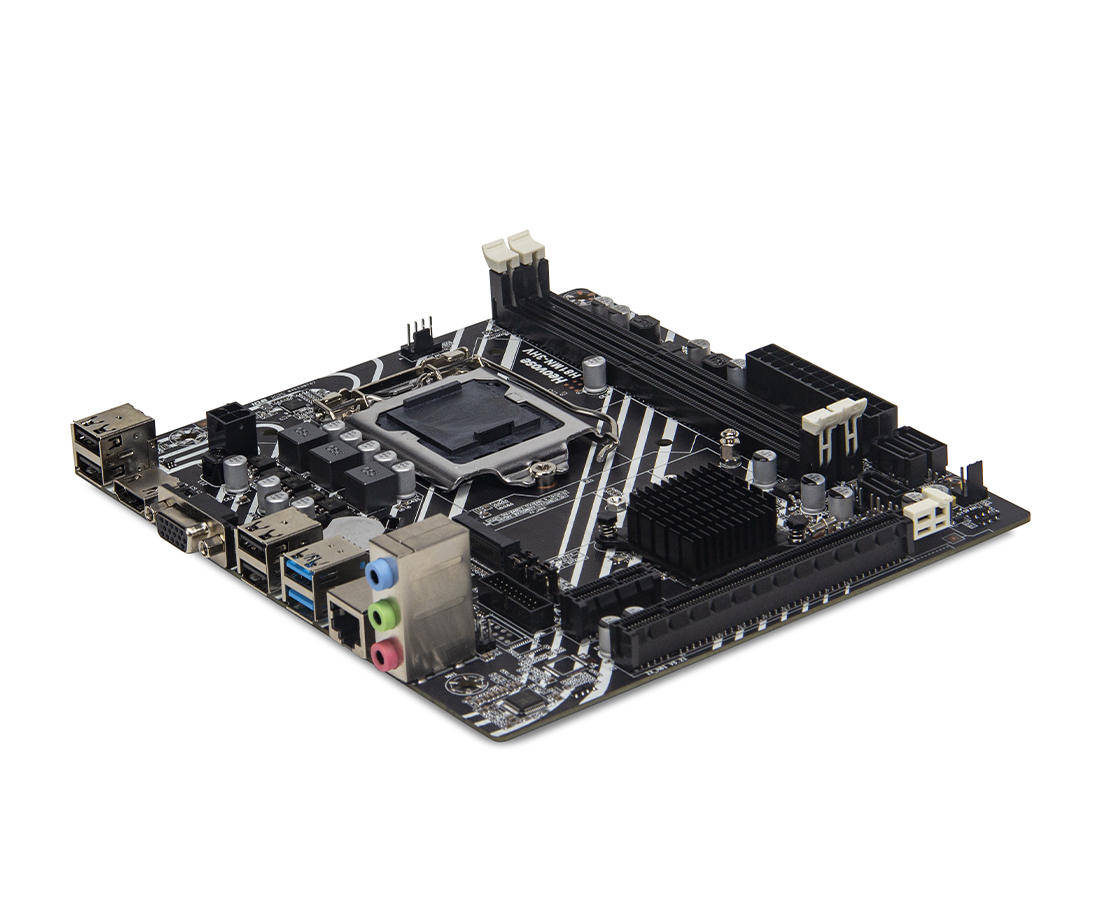

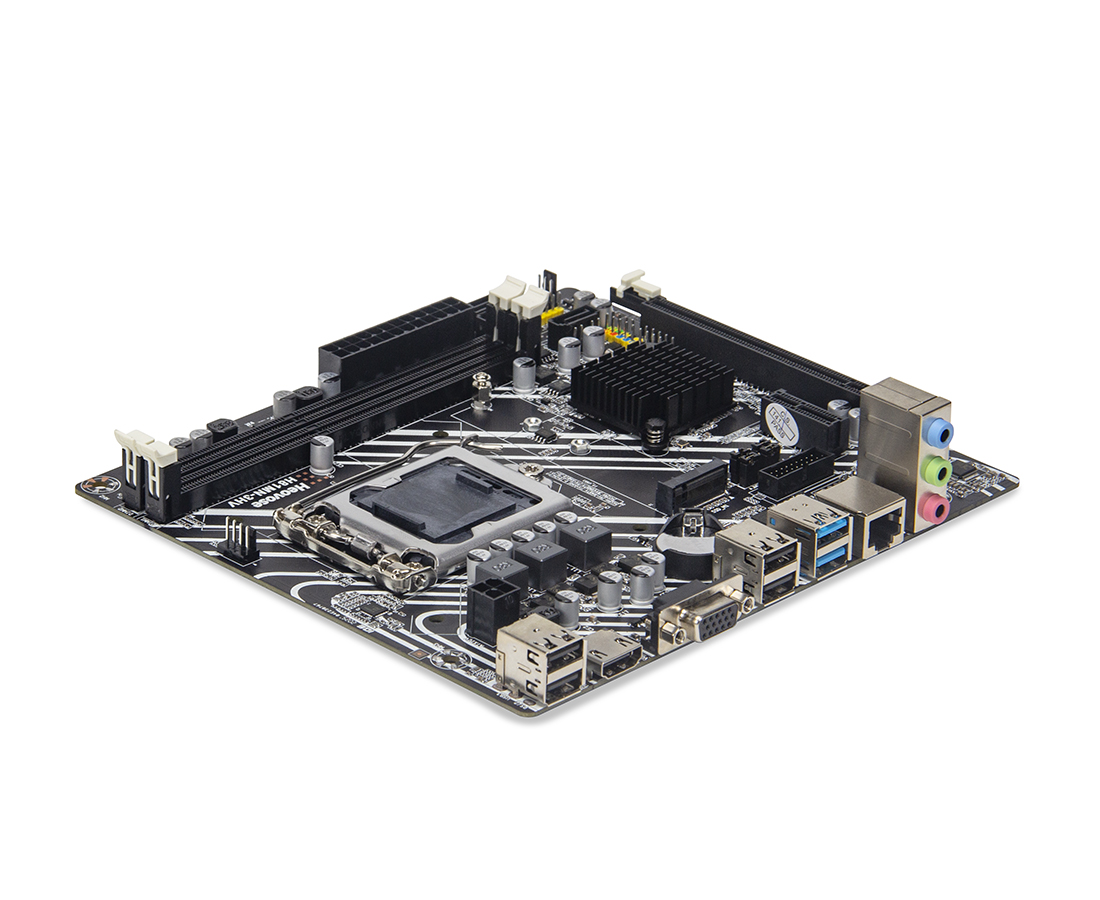

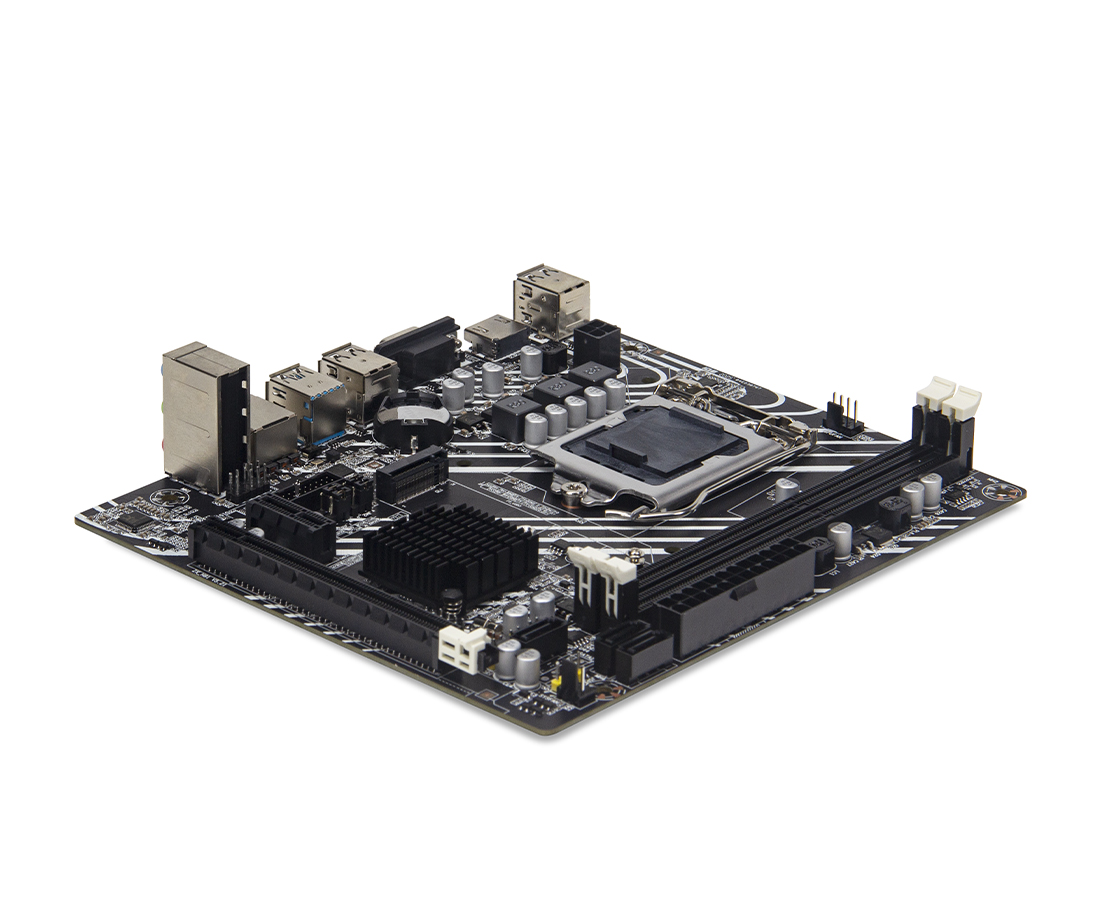

H81MN-3HV

GuangZhou Heovose Technology Co., Ltd. ꄲ Motherboard ꄲ H81MN-3HV

H81MN-3HV: Intel H81 chipset for 4th Gen Core CPUs. Micro-ATX (170x190mm). Dual DDR3 (16GB max). Storage: 3x SATA, 1x M.2 (NVMe/SATA). Rear I/O: HDMI, VGA, 4x USB 2.0, 2x USB 3.2 Gen1, Gigabit LAN, Audio. Front expandable: 2x USB 2.0 + 2x USB 3.0. Slots: PCIe x16, PCIe x1. Realtek LAN & Audio.
