  • Display parameters
    Screen size
    86"(16:9)
    1893.4×1064.9mm[H×V]
    Screen brand
    Original brand new ultra clear LED screen
    Resolution ratio
    3840×2160
    Viewing Angle
    178°（H）/178°(V)
    Brightness
    350cd/m2
    Contrast ratio
    5000:1
    Response time
    8ms
    Color depth
    16.7M
    Scanning frequency
    4K-60HZ
    Backlight source
    DLED
    Display output
    HDMI
    Color system
    PAL、NTSC
    Sound
    3D stereo sound effect output power 2 * 10W
    Display screen protection
    Tempered explosion-proof glass
    Touch parameters
    Touch embedding method
    Built in integrated, non external
    Touch sensing technology
    Infrared induction recognition touch technology (20 points)
    Writing style
    Fingers, touch pens, or other devices with a diameter not less than 2mm
    Cursor speed
    120 points/s
    Positioning accuracy
    More than 90% of the touch area is± 1mm
    Communication interface
    B-type USB male connector
    Touch resolution
    32767*32767
    Touch count
    Theory infinite
    Computer response
    System automatic recognition;≤15ms
    Driver program
    Drive free
    Touch function
    Supports 20 point computer touch operation, supports image enlargement, reduction, and rotation
    Machine parameters
    Main board system
    Android 11.0
    Motherboard processor
    Amlogic T982 processor quad core Cortex-A55
    Main board storage space
    32G
    Main board memory
    4G
    Webcam
    Standard 4800W pixel camera and 8-array microphone
    Input Port
    RJ45×2
    HDMI_In×2
    Type-C×1
    DP×1
    VGA_In×1
    VGA AUDIO_In×1
    YPBPR×1
    AV_In×1
    RS232×1
    MIC×1
    headphone jack×1
    SPDIF×1
    Dual band WIFI×1
    TF card×1
    Android USB2.0×1
    Android USB3.0×1
    USB3.0(Full channel)×4
    Type-c(Full channel)×1
    Touch USB2.0-B×1,Touch USB2.0-A×1
    Output port
    Coaxial output, headphone audio output, touch output interface, RS232, AV output×1, HDMI output×1
    Front port
    USB×2，HDMI IN，TOUCH USB，TYPE-C
    Storage environment
    Storage temperature:-20℃~60℃
    Storage humidity:10%RH~90%RH
    work environment
    Working temperature:-10℃~55℃
    Working humidity:10%RH~90%RH
    Installation method
    Hanger (standard configuration)
    Hanger hole spacing
    800×400mm
    Power type/method
    Three core power supply/fixed
    Power interface specifications
    Pinzi Seat
    Power dissipation
    ≈288W
    Voltage range
    110~240V/50~60Hz
    Sound
    Front 2 8Ω 10W mid-range speaker
    Installation dimensions of embedded walls
    1485.2*902.4*83.2
    Principles of embedded wall installation
    Unilateral increase of 20mm
    Standby power
    ≦0.5W
    Service life
    ≧50000 hour
    Computer parameters
    Chipset
    Intel chipset
    Processor
    Intel Core i3/i5/i7 2/4th
    Memory
    4GB DDR3
    Hard disk
    128GB SSD
    Graphics card
    Intel Core Graphics Card
    Input Port
    1×LAN Port，3×USB3.0 Port，3×USB2.0 Port，1×MIC-IN Port
    Output port
    1×HDMI Port，1×VGA Port，1×LINE-OUT Port
    operating system
    Windows 7 flagship operating system (optional for Win10 operating system)
    Random attachments
    Standard accessories
    1PCS*Power cord 1.5M
    1PCS*Certificate of conformity
    1PCS*Warranty Card
    1PCS*Instructions
    1PCS*Remote control
    1PCS*Touch pen

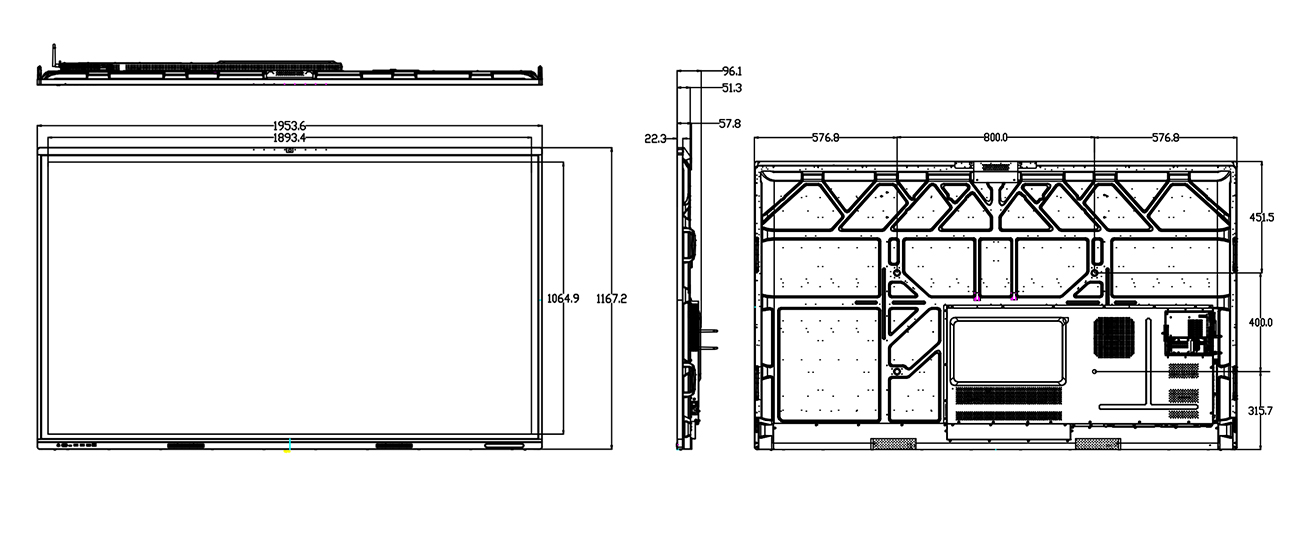

    Overall dimension diagram

    This document may not fully reflect all the latest changes to the product. Please refer to the actual product or contact us。

  • 01

·Standard high-precision infrared touch bar, supporting multiple people to write small characters within 1cm in height, and supporting multi-point touch screen;
·Ultra thin aluminum front frame, front speaker for sound output, international standard OPS slot, integrated plug-in design;
·The system comes with functions such as screen projection, electronic whiteboard, annotation, etc;
·Android 11.0 system support, multi theme settings, custom startup logo and other functions;

Features
