General

Model

PCXXXWT

Panel size

21.5 / 23.8 / 27inch

Resolution

FHD/QHD(2K)（16:9）

Panel type

VA

Surface treatment

Haze (Haze 25%)，Hard coating (3H)

Brightness

250 cd/m2(Typ.)

Contrast

21.5/23.8inch:3000:1(Typ.)(transillumination)
27inch:4000:1(Typ.)(transillumination)

Display Color

16.7M (8-bit)

Type of Lamphouse

WLED

Viewing angle

89/89/89/89(Typ.) (CR ≥ 10)

Mechanical

Product size

21.5inch:493(W)×283(S)×369(H) mm
23.8inch:543(W)×321(S)×407(H) mm
27inch:615(W)×364(S)×446(H) mm

VESA

21.5/23.8inch:75×75mm
27inch:100×100mm

Material

ABS plastic shell,Aluminum alloy base

Working Temperature

0~50 ℃

Color available

Black

Connectivity

Output Port

FHD:VGA+HDMI; VGA+HDMI+AUDIO
QHD(2K):HDMI+DP+USB+AUDIO

Package（1 unit）

Accessories

Power cable,Power adaptor

Package size

-

Weight

-

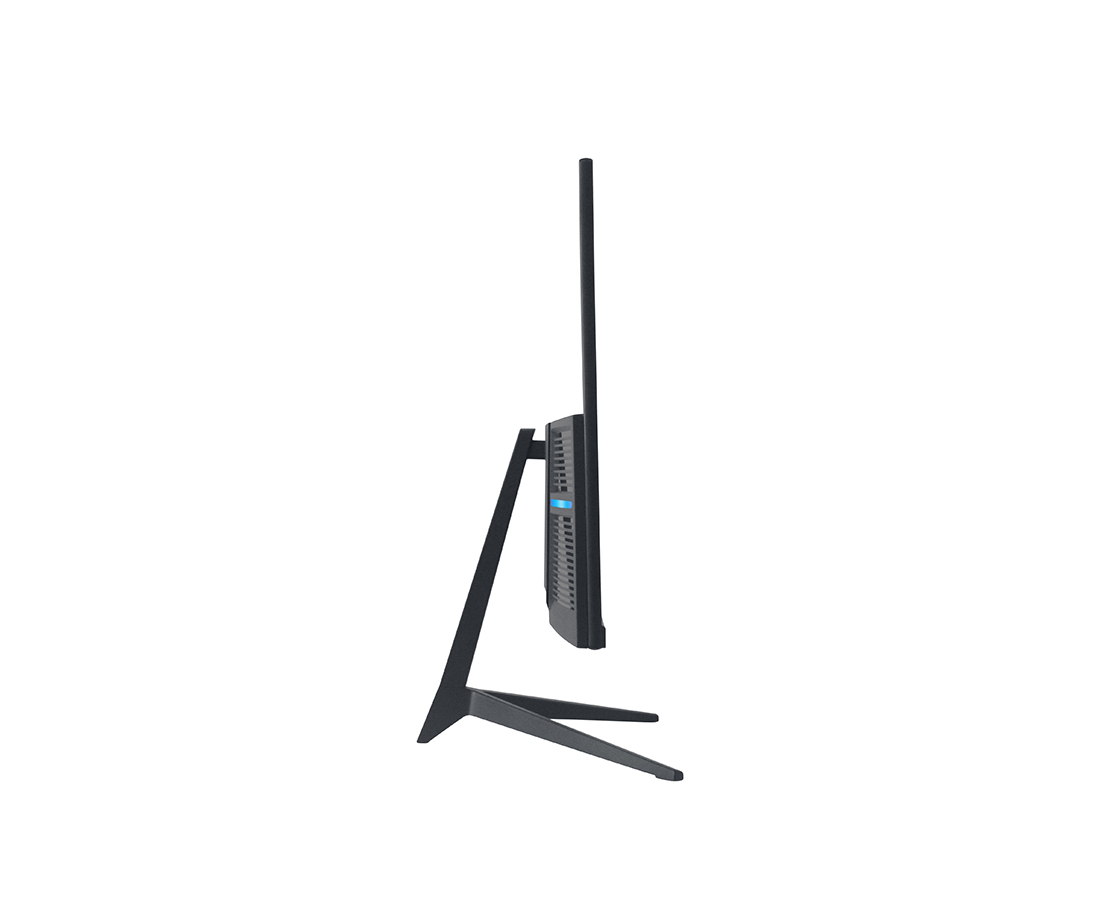

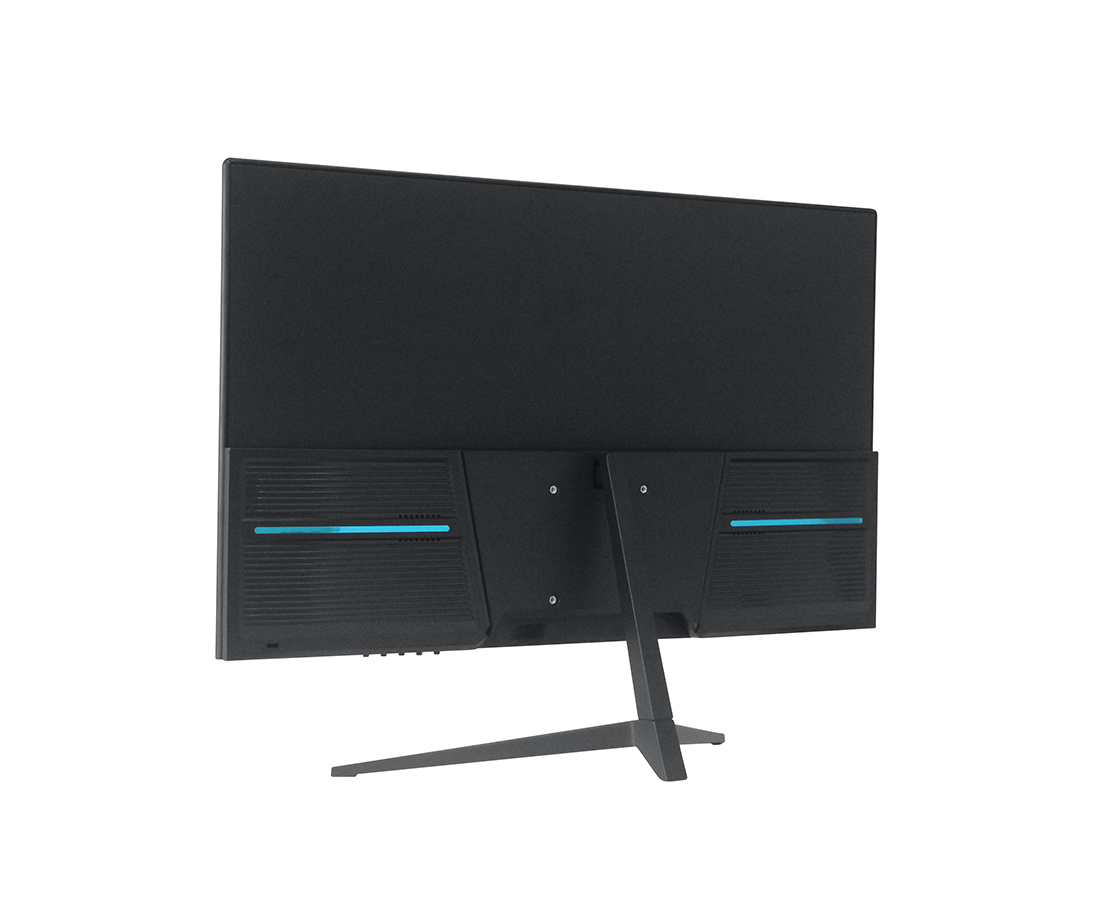

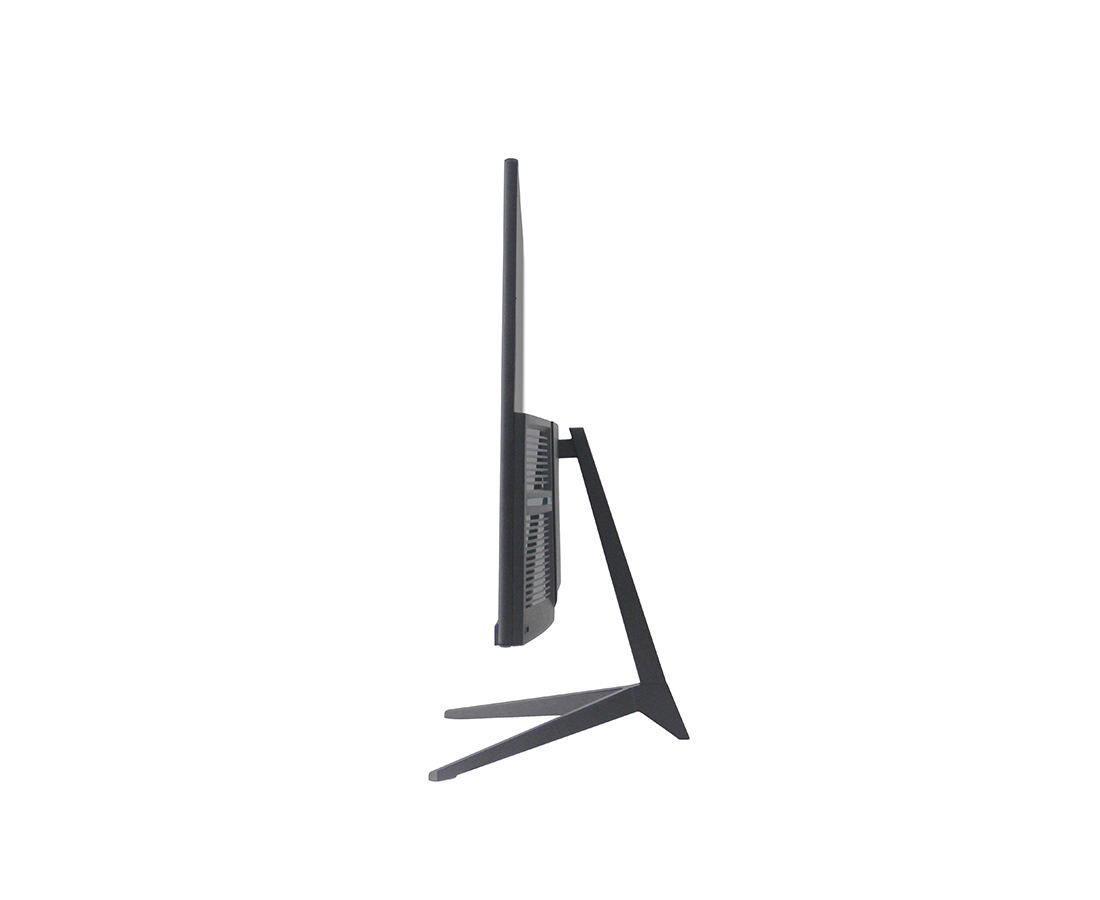

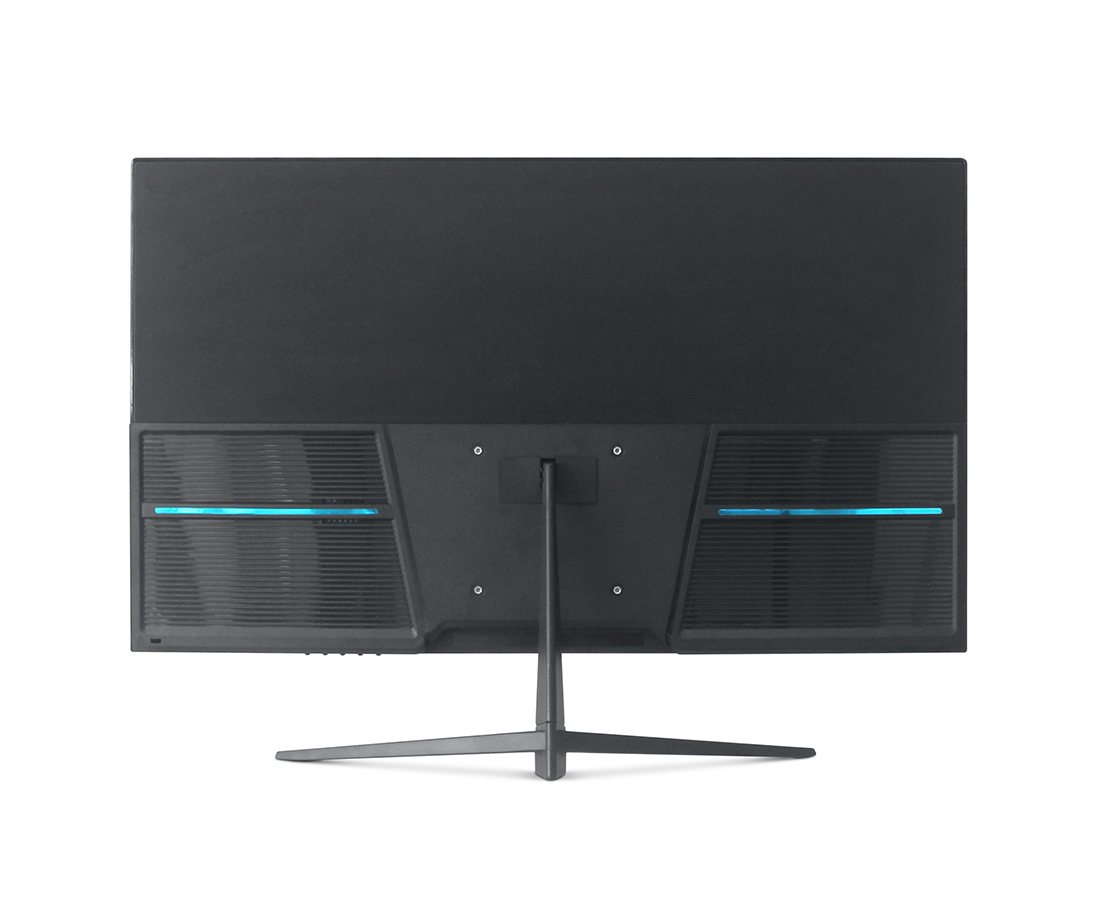

Business Office Monitor WT Series

GuangZhou Heovose Technology Co., Ltd. ꄲ LED MONITOR ꄲ Business Office Monitor WT Series

• Size：21.5 / 23.8 / 27inch
• Resolution：FHD/QHD(2K)（16:9）
• Brightness：250cd/m²
• Port：VGA+HDMI+AUDIO

Features
