General

Model

K4-S2

Panel size

21.5 inch / 23.8 inch

Touch screen

23.8inch Optional

Resolution

1920×1080(16:9)

CPU

Intel Core i3、i5、i7
Intel Celeron
Intel Pentium

RAM

4GB / 8GB / 16GB / 32GB

SSD

64GB / 128GB / 256GB / 512GB / 1TB

HDD

500GB / 1TB / 2TB

Graphics card

Integrated Graphics

Multi-Media

High Definition Audio Codec; Stereo Speaker

System

Compatible with Win7/Win10/Win11

Mechanical

Product size

21.5 inch:490(W)×290(S)×380(H) mm
23.8 inch:540(W)×320(S)×410(H) mm

Material

ABS plastic shell、base

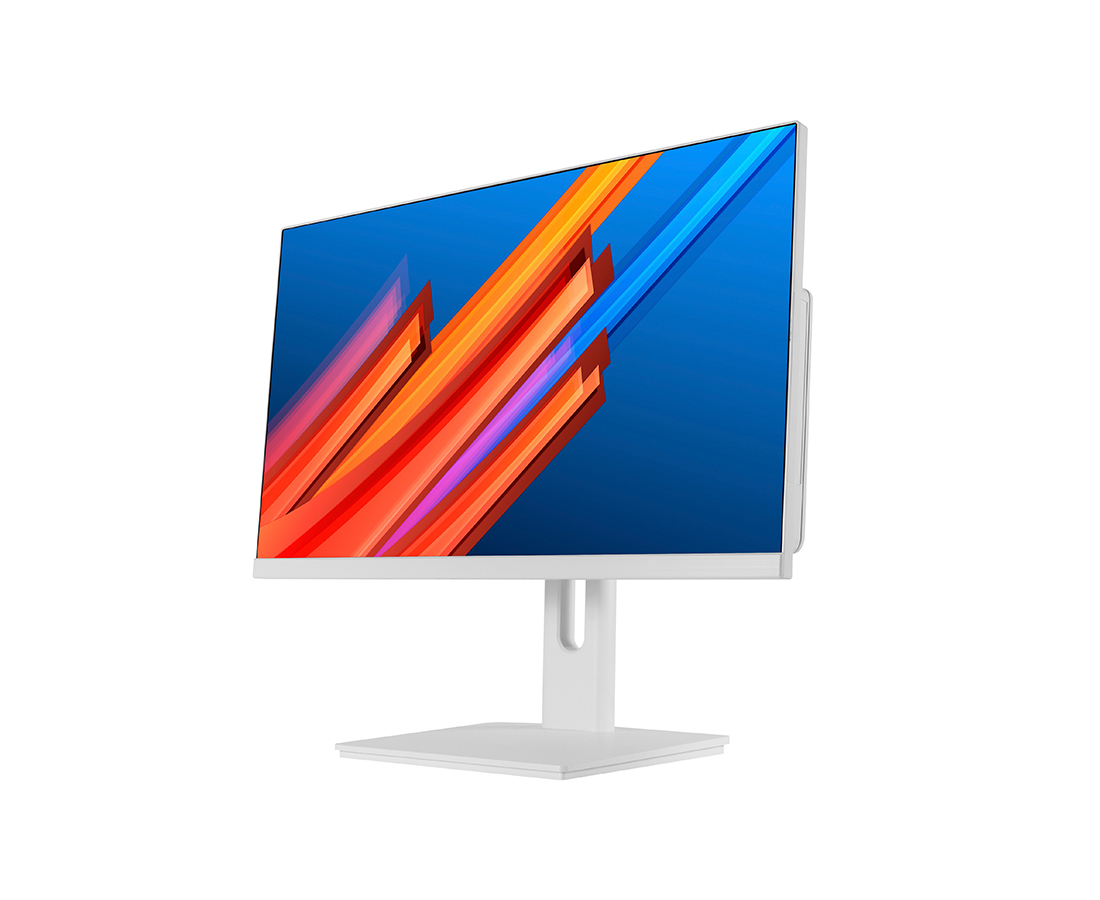

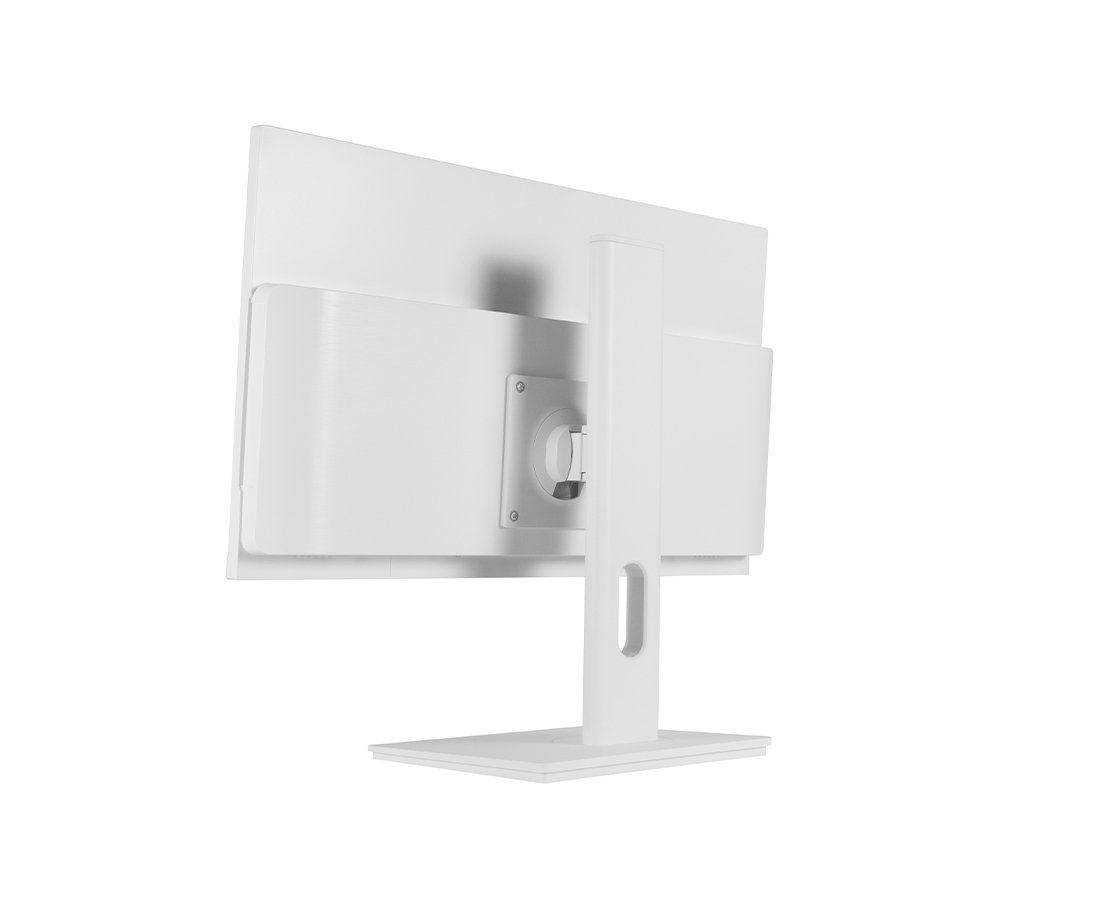

Color available

Black / White

Extensible

Camera

3.0MP/5.0MP/8.0MP（with Mic）Camera

Extended interface

2 × USB2.0

CD-ROM disk drive

external USB CD/DVD driver

Card reader

Yes

Connectivity

Network card

100/1000Mbps adaptive network card

WIFI

150Mbps wireless WiFi
(433Mbps dual band WiFi and WiFi 6 functions are optional)

Bluetooth

Default BT4.2 / Available BT5.0

Interface

1 × Power Port
1 × HDMI
1 × VGA(COM)
1 × LAN
4 × USB
1 × Audio Out
1 × Mic in

Package（1 unit）

Accessories

Power cable,Power adaptor

Package size

-

Weight

-

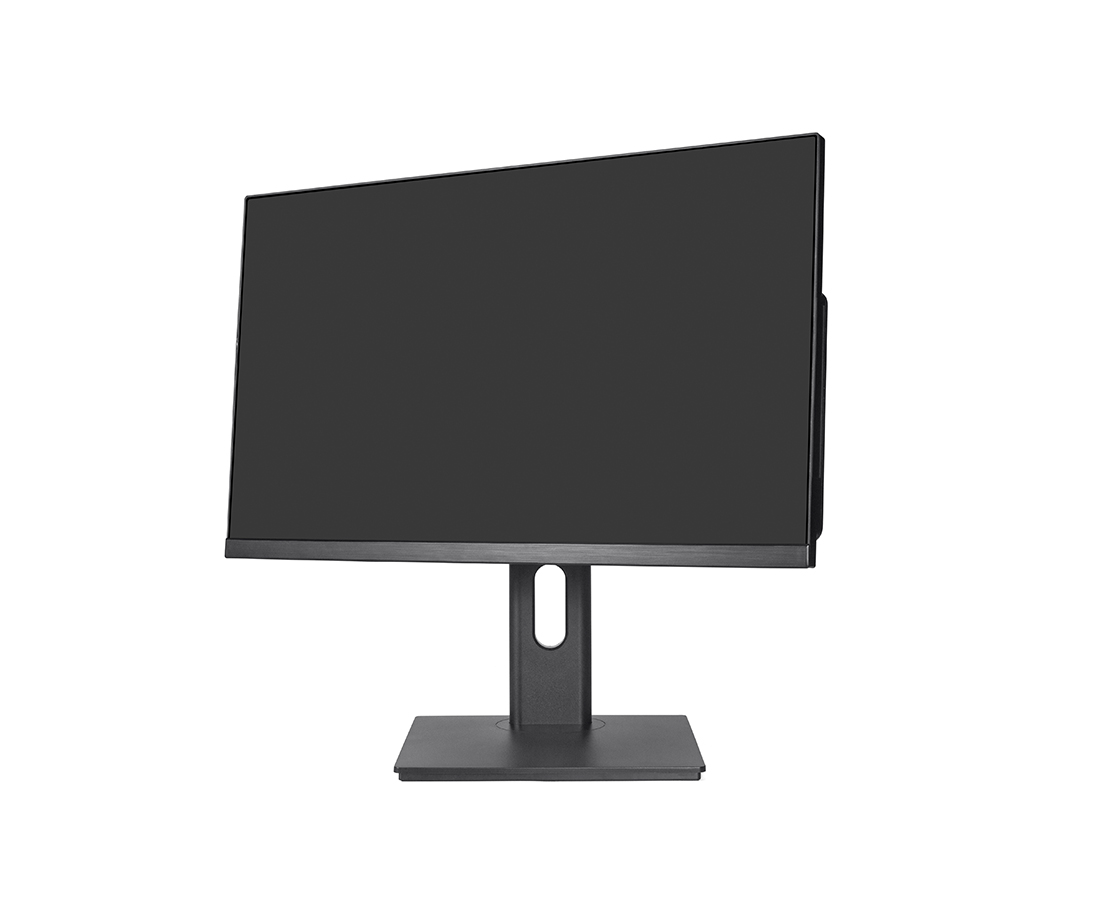

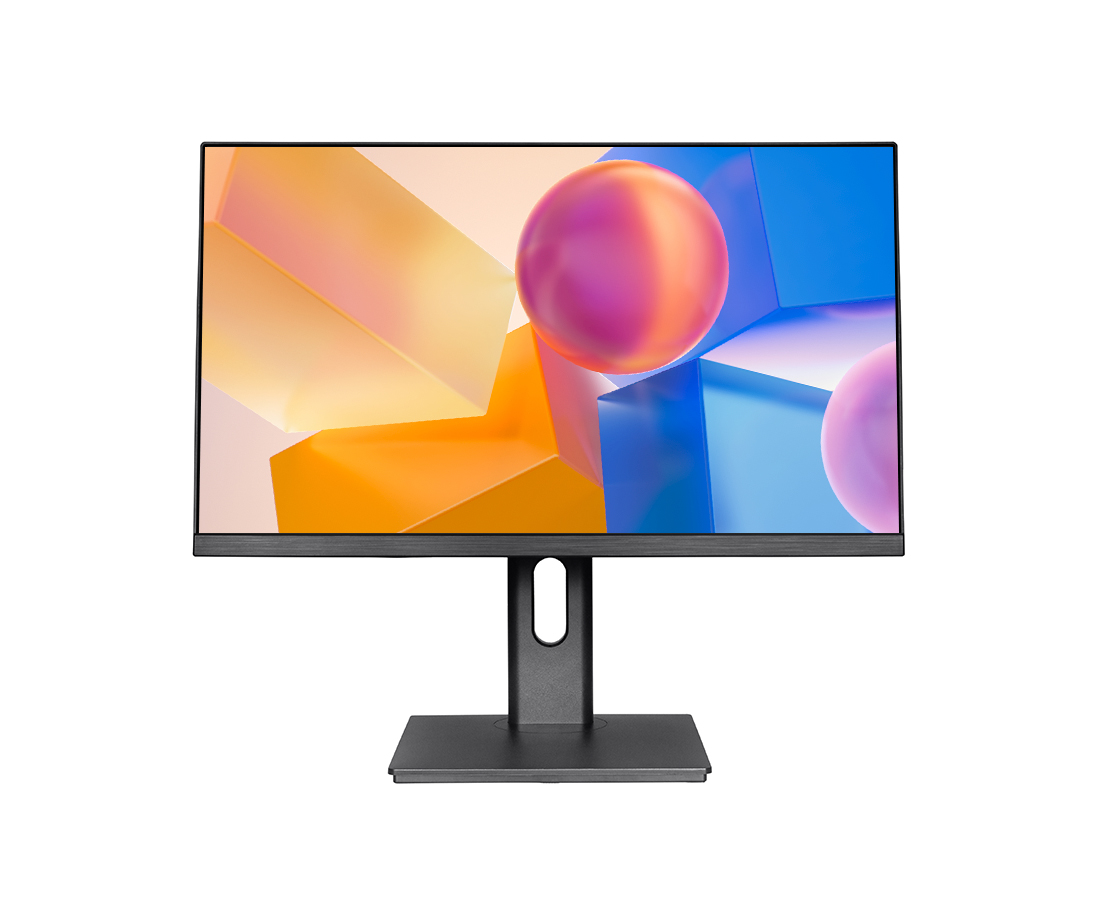

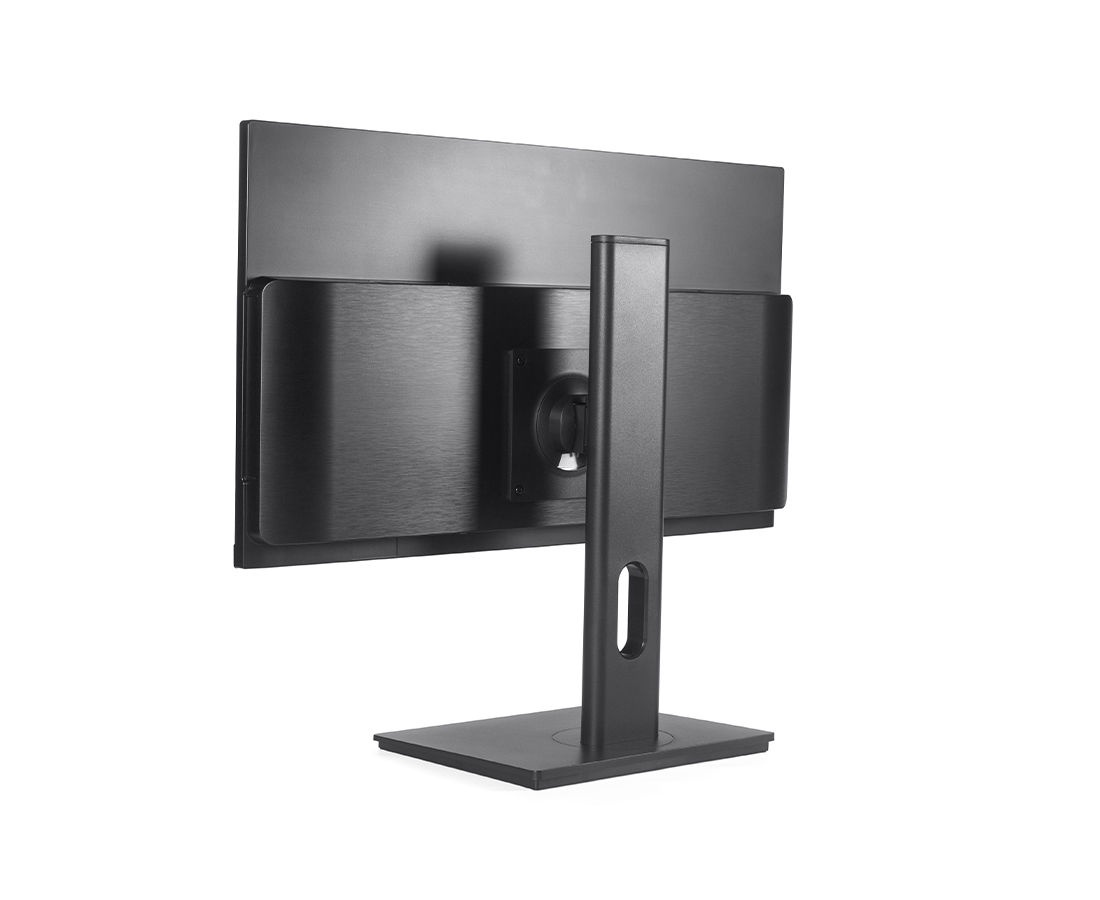

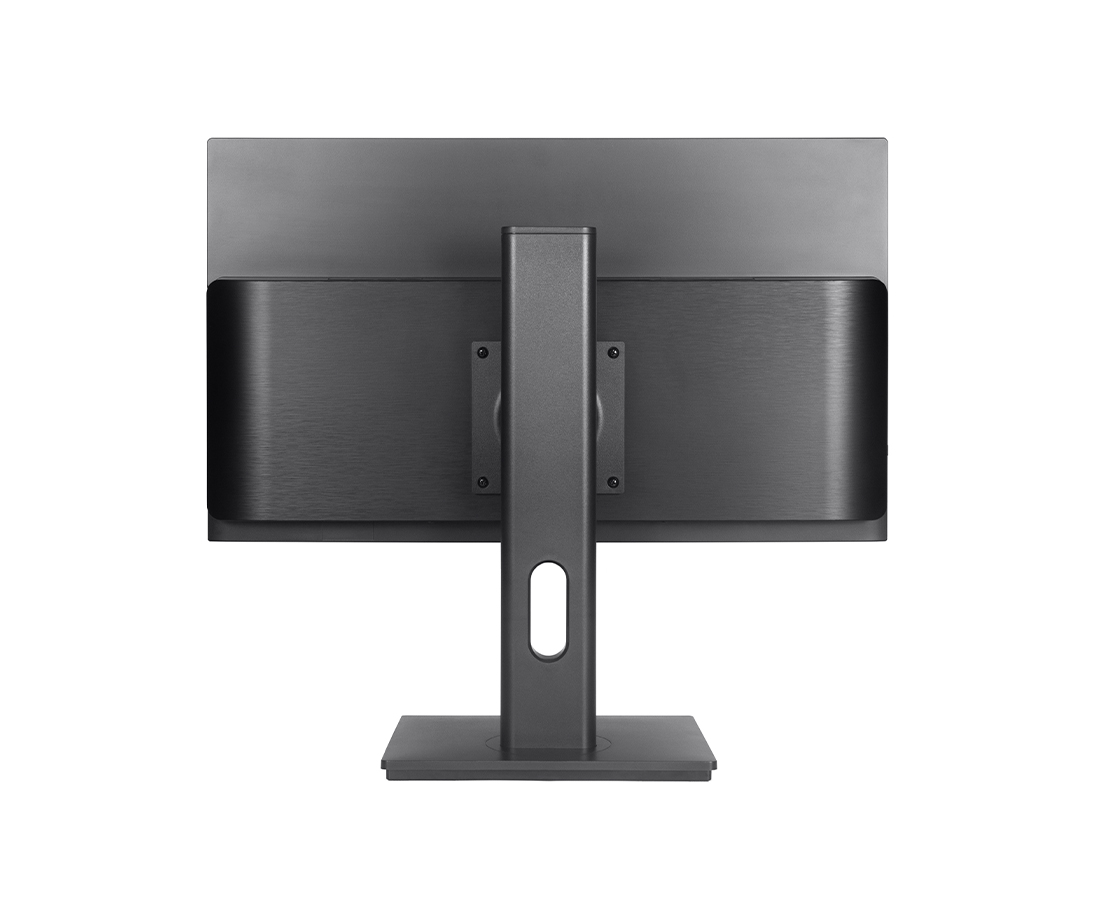

Business office K4-S2 Series Touch All-in-one PC

GuangZhou Heovose Technology Co., Ltd. ꄲ ALL IN ONE PC ꄲ Business office K4-S2 Series Touch All-in-one PC

• Optional optical drive / webcam / card reader;

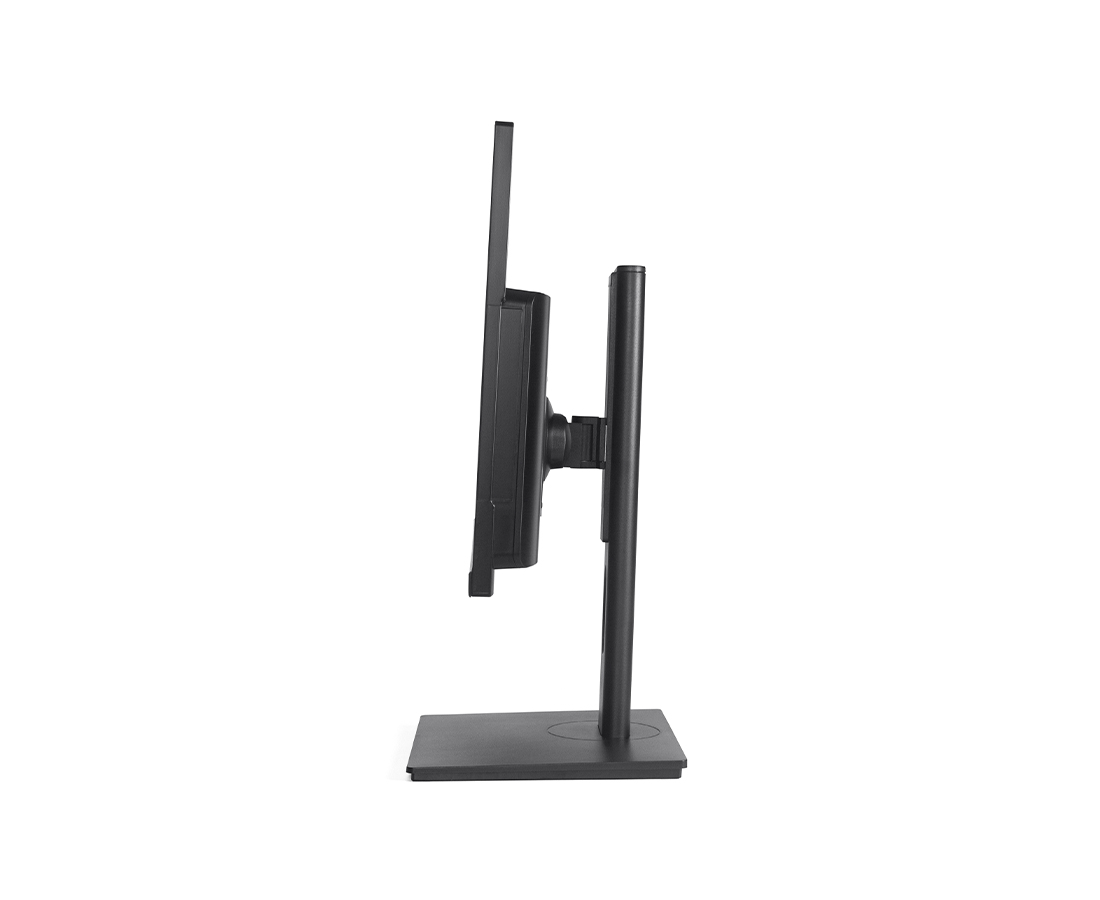

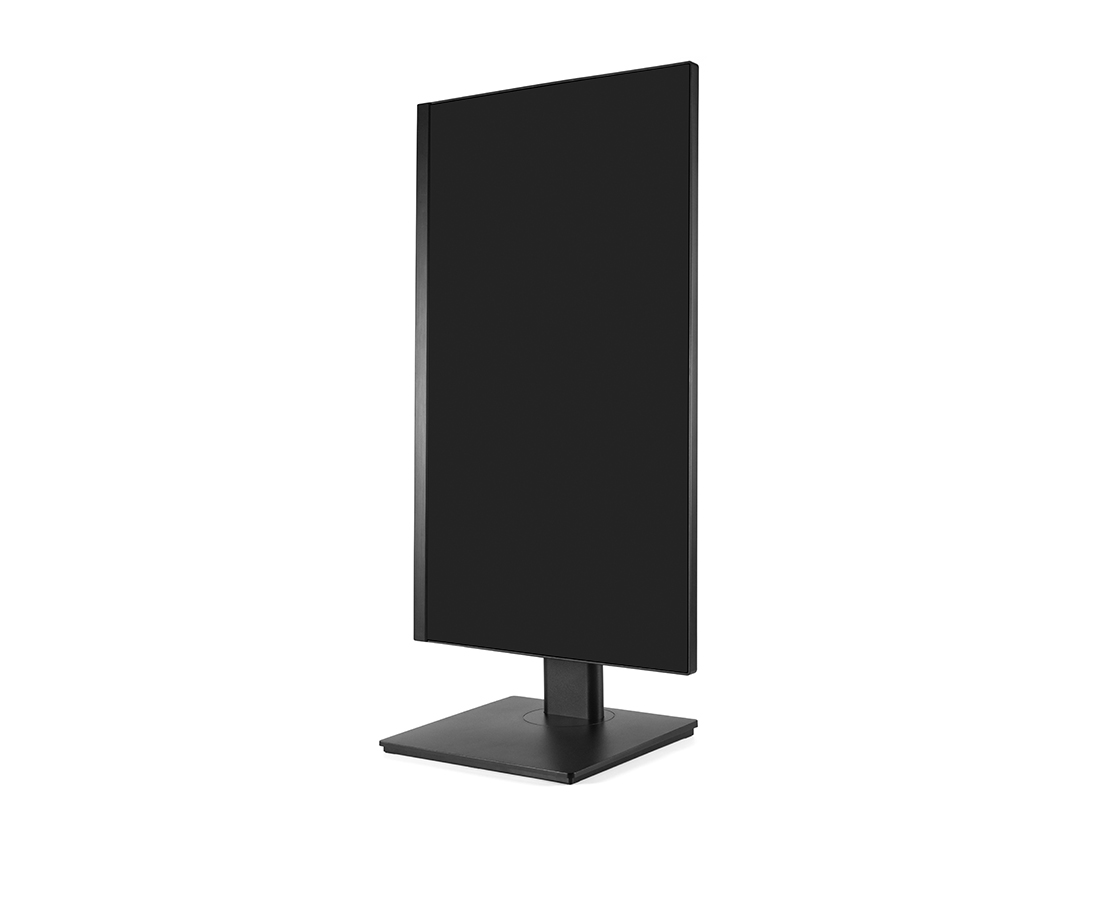

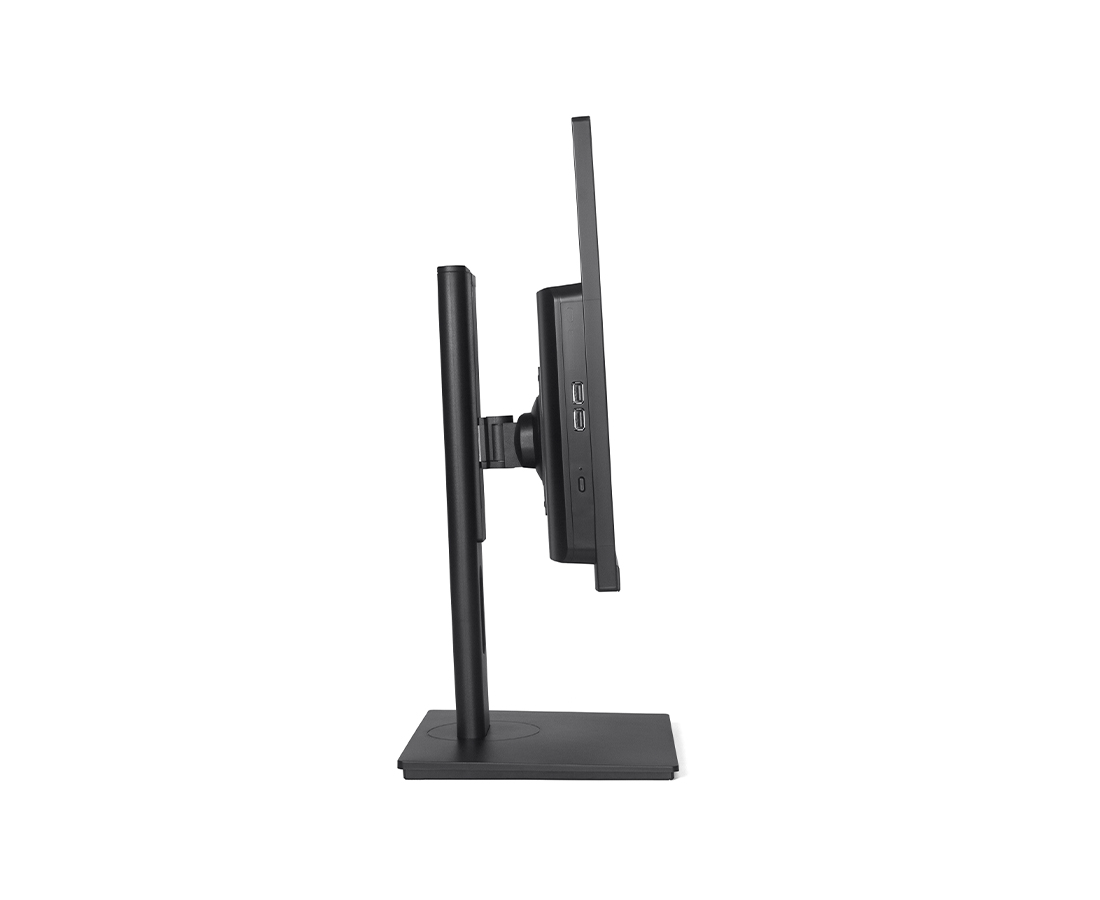

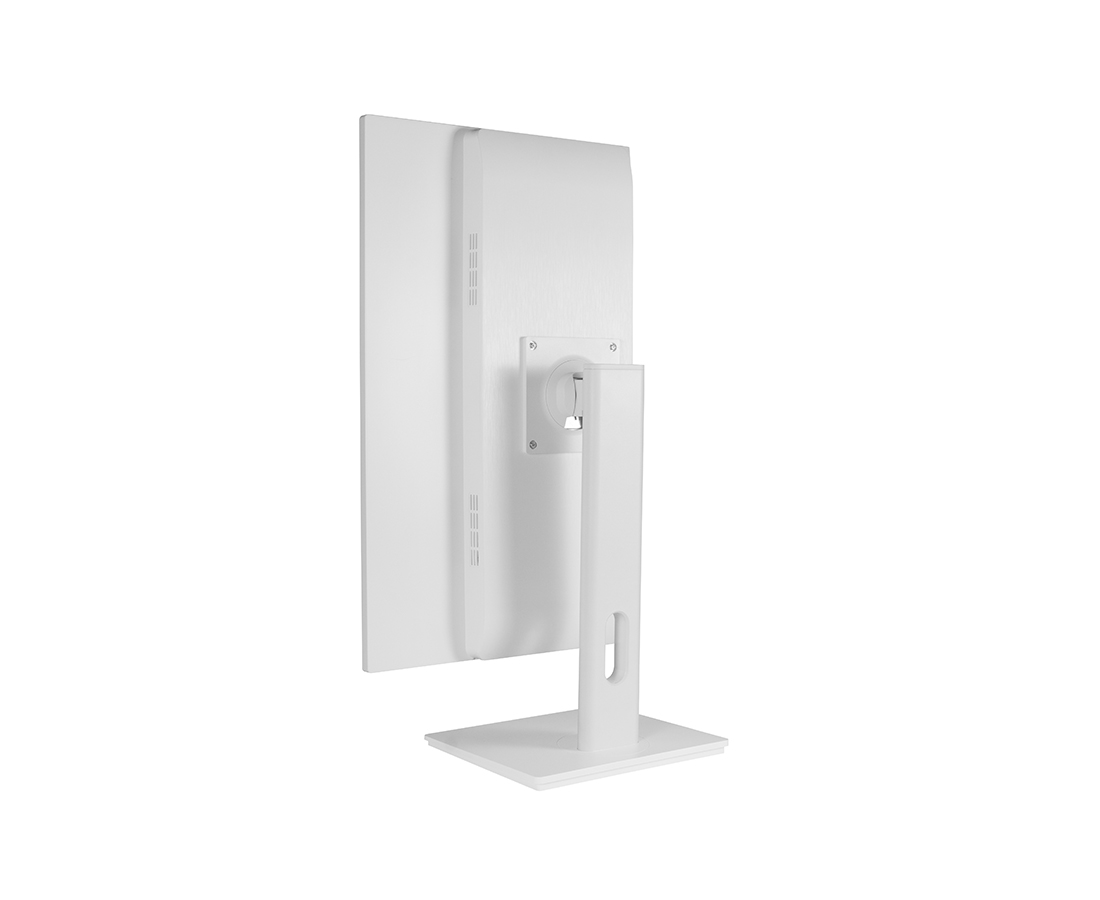

• Screen is rotatable 90 ° to the left or right, the base stand can rotate 30° horizontally.
• The screen can rise and fall 130mm, have more comfortable angle to choose；
• Only 23.8 inch can be installed the touchscreen;
