All in one PC
-
Product parametersDisplay Size98 inch（16：9）Panel typeLED LCDScreen display size2158.8 x 1214.4mm 【HxV】Physical resolution3840（H）×2160（V）Display Color10bit, 1.07BRefresh rate4K-60HzBrightness≤400cd/m2Contrast ratio5000：1Perspective (degree)178°Display screen protection4mm fully tempered high explosion-proof - anti glare glassBacklight lifespan50000 hoursTouch parametersTouch embedding methodBuilt in integrated, non external, front detachable designTouch sensing technologyInfrared induction recognition touch technology (20 points)writing styleFingers, touch pens, or other non transparent objects with a diameter of no less than 5mm (multi point 8mm)Cursor speed120 points/spositioning accuracyOver 90% of the touch area is ± 2mmInterfaceB-type USB male connectorTouch resolution32767*32767Touch countTheoretically infiniteComputer responseSystem automatic recognition; ≤ 15msDriverDrive-freeTouch functionSupports 20 point computer touch operation
Supports image enlargement, reduction, and rotationSystem parameterProgrammeT982.61 BoardCPUQuad core ARMCortex-A55GPUARM Mali-G52 MP2 (2EE)Memory4GStorage32GBWireless2.4G+5G dual wifi+BluetoothSystem versionAndroid 11.0Machine interfaceInput PortHDMI*2
RJ45/LAN*：1
VGA*：1
Mic*：1Output PortUSB2.0*1
RS323*1
Touch*1
Line Out*1
USB3.0*1
Optical Out*1

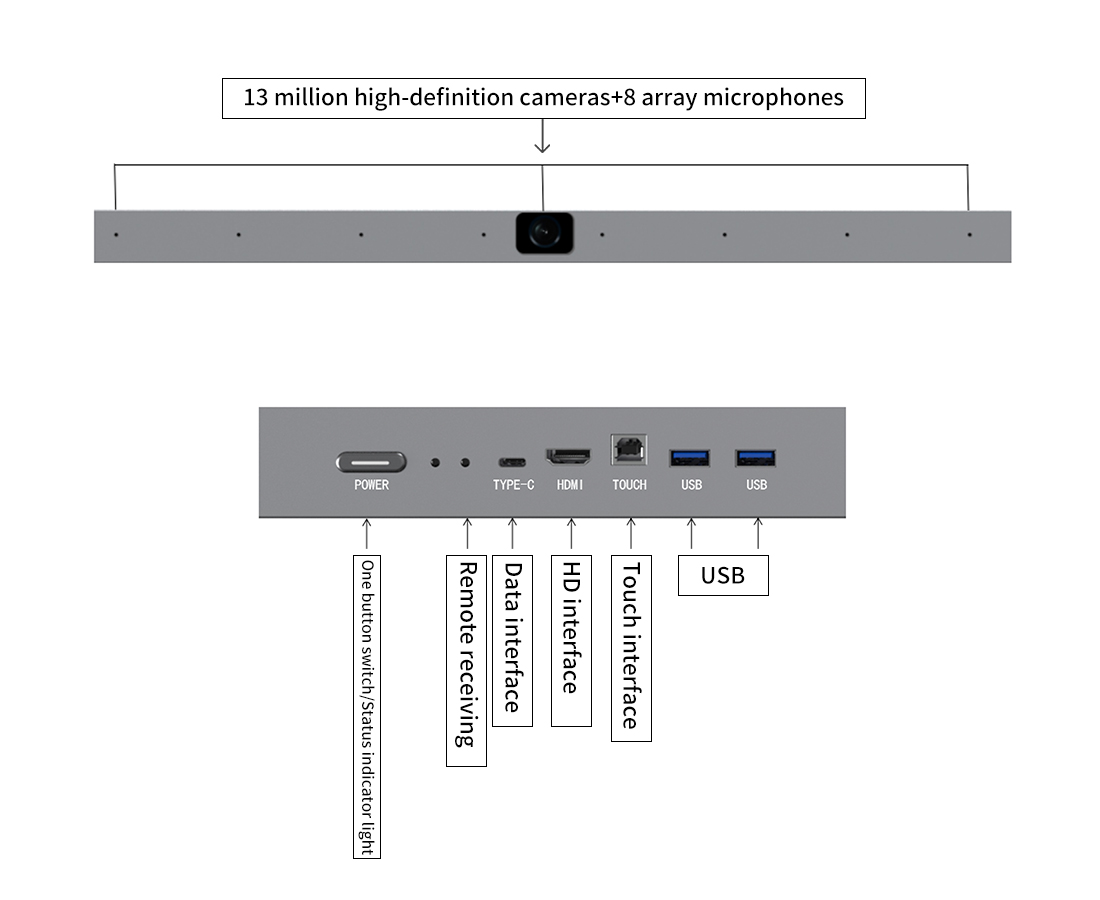

PC-Audio：1Front PortFull channel USB*2
Type-C*1
HDMI IN*1
Touch*1
One click on/off machineBuilt-in camera/MIC parametersBuilt-in camera4K 13 million high-definition pixels;
105 degree ultra large wide-angle camera;
Image sensor 13M 1/3.0”；8 array microphonesEquipped with echo cancellation and noise suppression;
The maximum pickup distance is 8 meters;
Sampling rate 16KHzComputer Configuration Scheme (OPS Scheme)CPU2nd generation and above Intel Core i3/i5/i7MemoryStandard 4G DDR3
Upgraded 8G DDR3Hard diskStandard 64G solid-state drive
Upgrade version 128G, 256G solid-state driveGraphics cardIntel HD GraphicsIO interfaceOutput: 1 * HDMI, 1 * VGA, 1 * LINE earphones
Input: 4 * USB2.0, 1 * RJ45 network interface, 1 * MIC microphone, supporting wifi;Operating systemWindows 7 Ultimate(Standard)/Windows 10compatibilityCompatible with Android& Windows systemCharacteristics of the entire machineShell and appearanceAluminum profile frame zero stick design, front button, front port, front speakerColourSteel grayOutline dimension2215.3*1340.15*93.4mm(plus wheels 1570mm)Package size2380*328*1462mmNet weight95KGGross weight126KGMaximum power consumption rate≤440WStandby power≤0.5WHorn specifications10W/8 Ω × 2 speakersInstallation methodStandard wall mount (optional with mobile bracket)work environmentWorkplaceIndoorOperation temperature0°C - 40°CWorking humidity10% - 90% No condensationStorage temperature-20°C - 60°CStorage humidity10% - 90% No condensationStandard random attachments (according to actual situation)Standard accessories1PCS*Remote control
2PCS*Battery
1PCS*Warranty card
1PCS*Touch Pen
1PCS*Certificate of conformity
1PCS*instructions

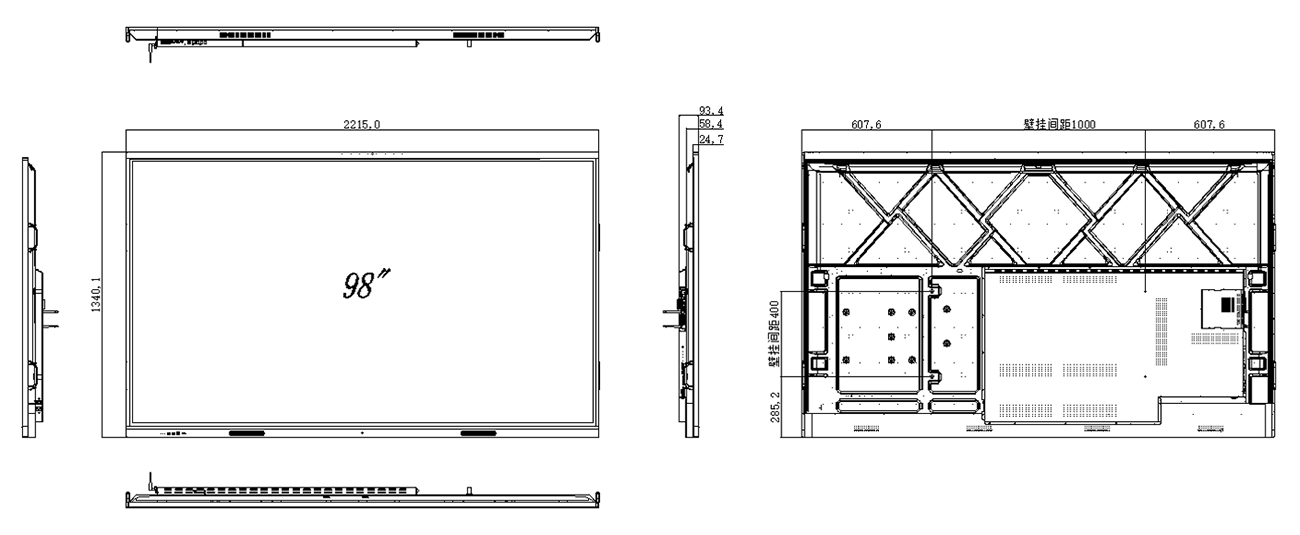

1PCS*Power cord 1.5 metersOverall dimension diagram
This document may not fully reflect all the latest changes to the product. Please refer to the actual product orcontact us.
-
·Support full channel switching of touch, touch menu, touch menu operation, touch volume adjustment, touch brightness adjustment
·Supports sleep timing and shutdown memory
·Supports one touch energy-saving [i.e. the screen is not lit and the all-in-one device is in working mode, while audio and video can be played normally]
·Supports sleep timing and shutdown memory
·Supports one touch energy-saving [i.e. the screen is not lit and the all-in-one device is in working mode, while audio and video can be played normally]
